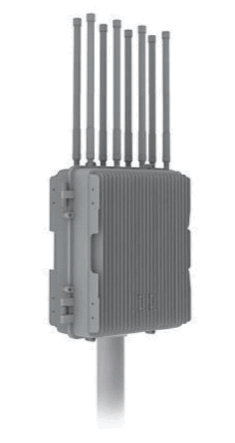

Figure 1 Diagram of the equipment
This includes areas such as restricted areas, city fortification, government offices, prison guards, airports, petrochemicals, and major events.
|
Interference bands |
800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz |
|
Control angle |
360° |
|
Interception distance |
1km (typical operating conditions) |
|
Interception response time |
≤ 5s |
|
Interception angle |
Horizontal : 360°, vertical : 90° |
|
Connection method |
network connection (RJ45) |
|
Operating temperature |
-40°C ~ 70°C |
|
Power supply |
AC220V |
|
Protection level |
IP66 |
|
Dimensions |
465mm x 510mm x 233mm |
|
Weight |
≤21kg |
