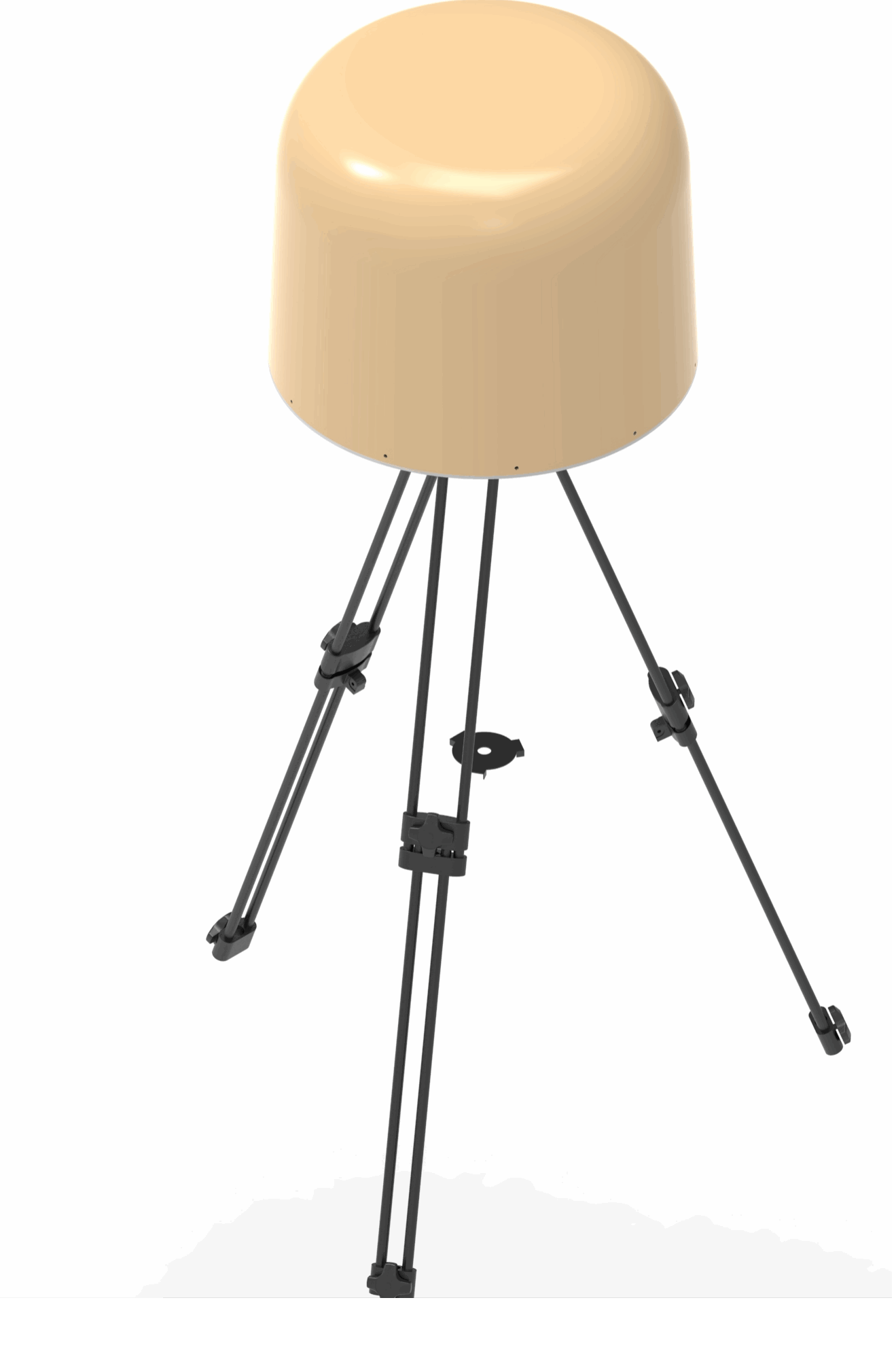

Figure 1 Diagram of the equipment
This includes areas such as restricted areas, city fortification, government offices, prison guards, airports, petrochemicals, and major events.
|
Detection frequency |
300MHz~ 6GHz |
|
Scanning bands |
433MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (more bands can be configured according to demand) |
|
Detection distance |
≥ 8km, up to 12km (depending on working conditions) |
|
Scanning range |
360° |
|
Direction finding accuracy |
≤ 3° (RMS) |
|
Multi-target capability |
available |
|
Black and white list |
available |
|
Connection |
network connection (RJ45) |
|
Operating temperature |
-40°C ~ 70°C |
|
Power supply |
AC220V |
|
Protection level |
IP66 |
|
Size |
φ305mm×580mm |
|
Weight |
≤17kg |
