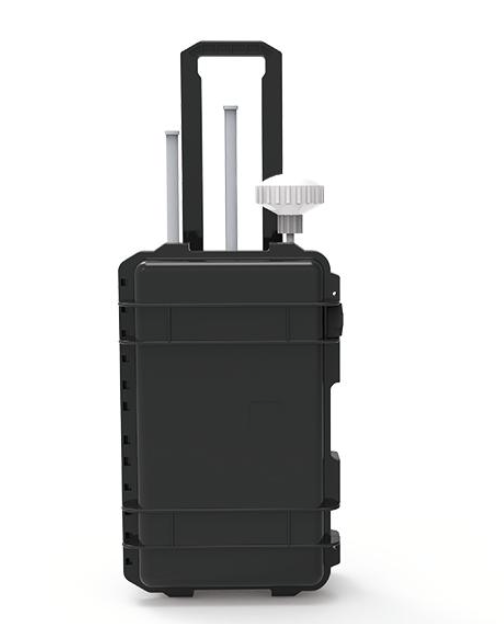

Figure 1 Diagram of the equipment
Security for places such as restricted areas, government offices, power plants, public security and justice, industrial facilities, VIP residences and events such as large conferences and sporting events.
|
Detection range |
300MHz～6000MHz |
|
Scanning frequency band |
433MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (more frequency bands can be configured according to demand) |
|
Detection distance |
≥4km, up to 7km (depending on working conditions) |
|
Scanning range |
360 ° |
|
Interference bands |
800MHz, 900MHz, 2.4GHz, 5.2GHz, 5.8GHz |
|
Control angle |
360° |
|
Interception distance |
1km (typical working condition) |
|
Decoy control radius |
5km (adjustable) |
|
Signal type |
GPS (L1), GLONASS (L1), optional BDS (B1), Galileo (E1) |
|
Power supply |
AC220V/built-in battery |
|
Operating time |
7 × 24h (AC220V) / 12h (battery) |
|
Operating temperature |
-40℃～70℃ (AC220V power supply) |
