Name: Integrated surveillance and attack drone defense system
Brand: Aircorp
Availability: InStock
Rating: 5 (1 reviews)

Integrated surveillance and attack drone defense system

Passive detection with highly integrated design is suitable for VIP residences, vehicle-mounted rapid deployment and other scenarios. A single device can detect and counter drones, providing all-round low-altitude protection anytime and anywhere;

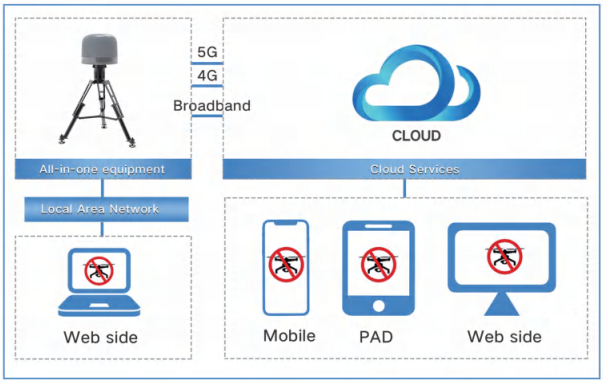

Supports 4G wireless communication, freely expands the network, and has 4-station TDOA positioning, enabling wireless grid-based smart management and control.

Desciption

System Features

System parameters

Detection frequency	300MHz-6000MHz
Detection distance	≥ 7km,
Scanning range	800MHz, 900MHz, 2.4GHz, 5.8GHz
Direction finding accuracy	≤ -110dBm
Deception	GPS(L1)，GLONASS(L1)，option BDS(B1),Galileo(E1)
Black and white list	available
Interference bands	900MHz, 2.4GHz, 5.8GHz,Navigation signal
Control angle	360°
Interception distance	1km (typical operating conditions)
Alarm	Sound and light alarm, SMS alarm, APP alarm

Prominent advantages

TDOA is precisely positioned and stealthy: With TDOA technology, the 3D coordinate information of the target drone and the remote control (flyer) can be accurately given, which facilitates the disposal of the drone and the flyer and provides a basis for scientific law enforcement. No external radiation of electromagnetic waves, good concealment of itself.
Real-time track indication and hierarchical defence: The ability to form highly accurate trajectory information about the target drone, and thus determine the degree of harm, facilitates the construction of a hierarchical defence zone: an early warning zone, a countermeasure zone, a core zone, and the adoption of different levels of interception measures.
Visual tracking, directional interference strike: positioning accuracy sufficient to guide photoelectric tracking, real-time visual video tracking of UAV mountings for easy decision-making; directional electromagnetic interference suppression to reduce signal interference in the protection area.
Multi-target detection, 360° all-round defence: multiple UAV targets can be detected, identified and located at the same time, with multi-dimensional warning prompts by voice and warning lights, 360° all-round defence in the protection area.
Ultra-wide spectrum design, wide spectrum feature library: suitable for complex electromagnetic environment on the battlefield, low false alarm rate and leakage rate of the system, strong recognition capability.
Grid-based deployment, multi-level monitoring: supports flexible deployment of multiple systems, covers a wide area and supports multi-level monitoring.
All-day, all-weather, unattended: can work at night, dense fog and bad weather, 7×24h interval-free operation, high reliability design. It can work intelligently according to pre-programmed settings and effectively complement personnel monitoring to form a human-machine and human-technology co-defence.
